DESCRIPTION

Basic Info.

Model NO.	SQZK92/115/130/137/168/188
Classification	Single-blade Cutter
Driven Type	Hydraulic
Type	Industrial Cutter
Blade Material	HSS
Computerized	Computerized
Full Touch Screen	16inch
Colour	Gray
Max. Backgauge Speed( M/Min)	38m/Min
Language	Eight Languages Can Choose
Transport Package	Fumigated Wooden Case
Specification	92/115/130/137/168/188cm
Trademark	HPM
Origin	China
HS Code	8441100000
Production Capacity	1000 Unit/Year

Product Description

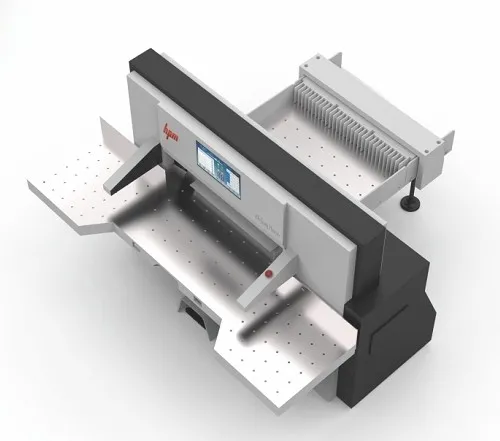

S16 Program Control Paper Cutter

Technical Parameter Computer System
1. The up-to-date 16" Widescreen LCD, full touch screen;2. Eight languages to choose.3. Metric system and British system two units, show the dimensions of the front knife and the back knife. 4. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 30-38m/min. 20-30 m/min . 15-20 m/min. 12-15 m/min .(four class to adjust).6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.7. With USB, transmit data, to convenient operator make programming and arrangement via PC. 8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.9. The backgauge is driven by a Inovance servo-motor with four speed levels.10. Use Italy oil pump and hydraulic system.11. With automatic pushing paper function, the distance can be adjusted.

Machine Performance
1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.2. Clamp press paper stack through hydraulic system, the spring re-position.3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.6.Import ball screw with double linear guides to drive backgauge.7.High safety infrared protection device according to CE standard.8.Main electronic units are from French TE and Japanese ORMON famous international brands.

Configuration Listing

No	Name	Brand, specification & model	Origin of brand
1.	Background LCD	16''Color touch Interface	China
2.	Control center	Inovance PLC (CPU224)	China
3.	Backgauge position motor	Inovance servo motor	China
4.	Pick-up	Autonics	Korea
5.	Limit switch	TE	France
6.	Guarding motor	TE	France
7.	Air switch	TE	France
8.	AC Contactor	TE	France
9.	Miniature relay	TE	France
10.	Switching power supply	TE	France
11.	Power switch	Moeller	Germany
12.	Ball screw	High accurate	Taiwan
13.	Linear guider	High accurate double linear guides	Taiwan
14.	Hydraulic system	Double gear pump	Italy
15.	Bearing	NSK	Japan
16.	Work Table	Slotless and plated chromium work table	China
17	HSS knife	Kanefusa	Japan
