Overview

Basic Info.

Model NO.	AS
Type	Shun Stick Folder Gluer
Automatic Grade	Automatic Folder Gluer
Driven Type	Electric
Packaging	Cartons
Condition	New
Voltage	3p 380V 50Hz
Certification	CE Certificate
Folding Way	Prefolding and Double Folding
Color	Dark Gray
Function	Cardboard Gluing and Making
Feeding Way	Automatically and Continuously
Weight	4t
After Service	Engineers Available Overseas
Material	Cardboard 210-800GSM
Belt	Nitta
Main Motor	Inovance
PLC	Inovance
Bearings	NSK
Transport Package	Wooden Pallets
Specification	11.8*1.3*1.45m
Trademark	ROLAM
Origin	China
HS Code	8441309000
Production Capacity	40 Pieces/Month

Product Description

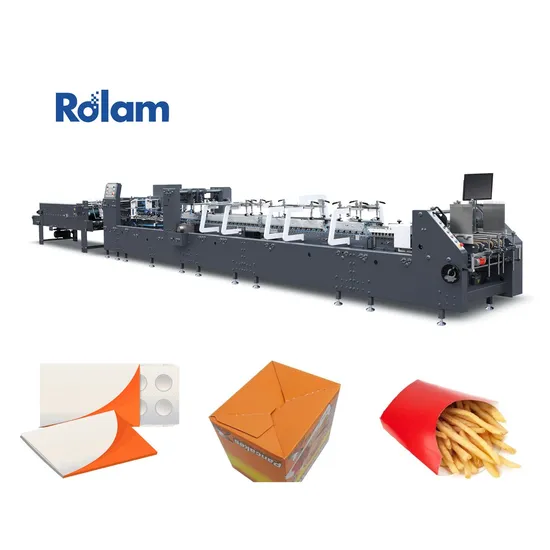

Rolam AS(650/800/1100) Cardboard Box Crash Lock Bottom Folder Gluer

AS series box fdding gluing machine machine is an air-moving pressure bed device for edge-straightening hook, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom locked cartons. (We can customize of other size).

New Luolan Machinery,
The Leader of Gluing and Folding Field.
Zhejiang New Luolan Machinery Co., Ltd, is established in 2006.
As a professional manufacturer, we not only do manufacturing, but also researching, marketing and offering after sales service. We supply quality equipment, effective and convenient solutions for cardboard box and corrugated box folding industry, printing and packaging industry. Gluing folding machine and window patching machine which produced by Zhejiang New Luolan Machinery Co., Ltd have approved by the National Quality Supervision and inspection
New Luolan Machinery has strong technology for Products research, with all-sided testing program. As a National High-tech enterprise, Luolan has got a number of patent and The Gluing Folding equipment have passed the test by National Quality Supervision Center.
New Luolan closely grasps the trend of industrial development planning, selects industrial intelligent production 4.0.New Luolan will provide the best quality and most competitive Gluing Folding equipment to all of our clients.

Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries, Also some are according to the customer's requirement.

Q: What is the machine warranty? A: One year.

Q: What is the production time while placing order? A: About 35 daysQ: What is the delivery time? A: Within 30 days after get the payment. Q: How about after-sales service process? A: When your machine has problem, contact your sales and we will solve your problem soon as possible. Q: Do you have stock product to sell? A: Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.

Why Choose Rolam Product Description Product Parameters

AS TECHNICAL PARAMETERS
MODEL	650	800	1100
Paper material	Cardboard 210-800gsm, E/N/F Flute
Max. speed	300m/min
Max .thickness of folded box	12mm	12mm	12mm
Way of folding	Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power supply	3P 380V 50HZ
Blank width	650mm	800mm	1100mm
Length x Width x Height	12x1.08x1.4m	12x1.23x1.4m	12x1.58x1.4m
Net Weight	4T	4.5T	5T
Total power	11.2kw	12.7kw	13.4kw

Samples

Straight Line Box
Model	650 Type	800 Type	1100 Type
Way of Folding	Two Carriers	Two Carriers	Two /Three Carriers
B+C+D+E	130-650	130-800	130/280-1100
C+D (Min)	65	65	65/140
F	70-700	70-700	70-700
G (Max)	700	700	700
Prefolding
D+E (Max)	300	300	300
G (Max)	400	400	400

Crash Lock Bottom Box
Model	650 Type	800 Type	1100 Type
Way of folding	Two Carriers	Two Carriers	Two / Three Carriers
B+C+D+E	130-650	130-800	130/280-1100
C+D(Min)	65	65	65/140
F	70-700	70-700	70-700
G(Max)	700	700	700
H(Min)	25	25	25
L(Max)	30-100	30-100	30-100
