DESCRIPTION

Basic Info.

Model NO.	220K
Classification	Single-blade Cutter
Driven Type	Hydraulic
Type	Industrial Cutter
Blade Material	Stainless Steel
Computerized	Computerized
Resolution Rate	0.01
Screen	10inch
Data Resolution Rate	0.01mm
Program Units	100
Cutting Positions	10000
Max Paper-Pushing Speed	5-15m/Min
Cutting Width(Cm)	220
Max.Cutting Height Without Press Plate	15cm
Max.Cutting Depth(Cm)	220
Extended Length of Working Table(Cm)	75
Height of Working Table(Cm)	89-92
Machine Width Including Side Table	376cm
Total Length of Working Table(Cm)	355
Cutting Speed(R/Min)	33
Max. Paper Pressure(N)	70000
Transport Package	Wooden Case
Specification	CE
Trademark	GUOWEI
Origin	China
HS Code	84411000
Production Capacity	1000 Sets/Year

Product Description

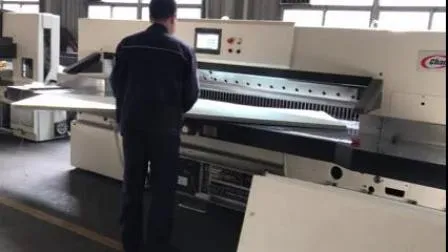

Computerized Paper Cutter (220K)

Functions
1. Japanese AC digit servo control system; 2. 10 inches colorful touching screen ;3. Resolution rate:0,01mm;4. Self-diagnostic function of troubles;5. Display the operating pattern;6. 100 program units;7. More than 10000 different cutting position;8. Dynamic display of cutting and running situation;9. Max paper-pushing speed of 8-20m/min;

Configuration
1. Adopt strongrt computer operating system;2. The storage time of memory can be up to over 300000 hours;3. Italian hydraulic components, electric components from France, Germany, Japan and Korea;4. Ball lead screw from Taiwan with linear guide-rail are used;5. PLC controller can monitor all the electrical and mechanical section;6. Adopt imported bearing of low maintenance.

Model	Unit	137	155	166	186	220
Max.Cutting Width	cm	137	155	166	186	220
	inch	54	61	65.4	73.2	86.6
Max.Cutting Height (without false clamp)	cm	16.5	16.5	16.5	16.5	16.5
	inch	6.5	6.5	6.5	6.5	6.5
Min.Cutting Size (without false clamp)	cm	3	3	3	3	3
	inch	1.2	1.2	1.2	1.2	1.2
Front Table length	cm	74	75	75	75	75
	inch	29.1	29.5	29.5	29.5	29.5
Max.Cutting Speed	times/min	45	42	42	40	33
Max.Clamp Pressure	N	45000	55000	60000	65000	70000
Power of Main Motor	Kw	4	5.5	5.5	7.5	7.5
Paper Feeding Motor	Kw	1	1	1	1	1.1
Air Pump	Kw	0.75×2	0.75×2	0.75×2	0.75×2	0.75×2
Net Weight	Kg	4500	5200	5500	6800	10200
Packing Size(L×W×H)	cm	280×160×215	296×165×215	315×160×215	340×182×230	390x190x270

(1) Over 30 years of international leading cutting equipment manufacturer(2) Applied range including Paper sheet,Plastic sheet,Foil,Honeycomb board,Cardboard,Carbon fiber laminate,Leather,Glassine and Packing sheet ect.(3)We have a special business mode,which is personalized production.We provide customized service according to each customer's specific way of production with the features of productions.(4)We have our own warehouse to ensure the supply of spare parts at any time.(5)Strictly follow ISO quality control, competitive price, fast delivery.
