Overview

Basic Info.

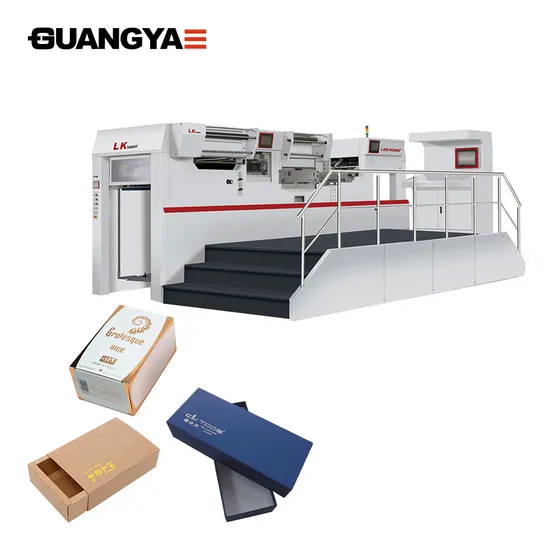

Model NO.	LK106MT
Color & Page	Multi Colors
Suitable Material	Paper
Automatic Grade	Automatic
Application	Leather Heat Transfer, Business Card, Plastic Flexible Packaging, Arts and Crafts, Electronic, Labels and Tags, Cap, Toy, Apparel
Usage	Paper Printer
Hot Stamping Pressure Factor	Substrate
Decisive Factor	Pressure
Transport Package	Vacuum Packing
Specification	CE, ISO9001
Trademark	Shiwei, Guangya
Origin	China
HS Code	84439119
Production Capacity	10 Sets/Month

Product Description

*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT

The Unique Human Care and Profession Passionate Sales Service System:

We have professional sales and engineer, are ready to send emergency repair parts in 24 hours, easily damaged parts in 5 days with professional knowledge.We focus on customer service, all year non-stop service, personal training and so on.Not only provide customer service, But also pre-sales system, including solution to product selection, storage of parts, technical guidance, operating training,exchange management platform and so on.Realizing the idea of focusing on customer success, creating value to customer.

TECHNICAL PARAMETER

Model	LK106MT
Max. sheet size(mm)	1060× 770
Min. sheet size(mm)	450× 370
Max. die cutting size(mm)	1050× 750
Max. stamping size(mm)	1030× 730
Max. feeding pile height (mm)	1350
Max. delivering pile height (mm)	1200
Max. working pressure(T)	300
Power rating(KW)	46
Main motor power(KW)	11
Max. foil longitudinal diameter(mm)	250
Zones individually heated	20
Max. working speed(s/h)	7500
Machine weight(kg)	17000
Gripper Margin(mm)	8-17
Air requirements	0.6Mpa, > 0.37m³ /min
Overall machine dimensions(mm)	6050× 4200× 2260

MAIN FEATURES

Non-stop Feeder
• Non-stop High-Speed Feeder
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function

Feed Table
• Driven by chain movement,with stable and reliable operation
• Imported belts
• Electrical front lays
• Double sheet detection function
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel

Host Station
• Electrically pressure adjustment function
• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine
• Automatic pressure keeping and pressure reduction function (only foil stamping)
• Imported intermittent mechanism to ensure running accuracy
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning

Foil Stamping Station

• With 3 longitudinal and 2 transverse foil shafts
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reduce makeready time
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimisation function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically

Delivery
• Electrical auxiliary delivery function
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function
• Tape inseter (optioinal)

Control System

Operating System
• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.



Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
