Overview

Basic Info.

Model NO.	750-2200
Species	Die Cutting and Creasing Machine
Imprinting Type	Platen
Placing Form of Template	Horizontal
Die Cutting Tool	Metal Mold
Computerized	Non-Computerized
Automatic Grade	Semi-Automatic
Application	Paper Packaging Materials, Carton Machine
Usage	Carton Box Making Machine
Function	Paper Board Die Cutting Creasing
Products	Carton Box Sheet
OEM	Yes
Power Supply	380V50Hz/as Customized
Transport Package	Plastic Film
Specification	as customized
Trademark	RICHOCEAN
Origin	Qingdao China
HS Code	8441309000
Production Capacity	20sets

Product Description

Main Description:

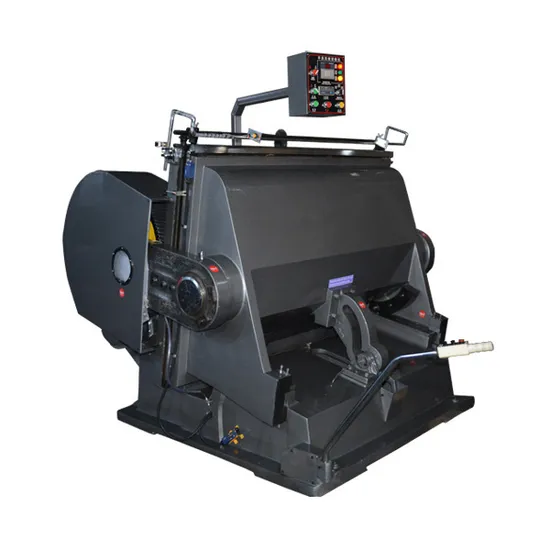

Hand feeding type creasing and die cutting machine,can complete the process of trimming ,creasing,cutting and punching once time.With precision die cutting,high efficiency,safety etc advantages.The machine is mainly composed of machine base frame,press frame,electromagnetic clutch transmission mechanism,electrical control,automatic reset device and automatic press-cut counting parts. It is applicable to printing packaging decoration and plastic industries. Features: 1. High strength due to one piece casting by using top-ranking material for machine body. 2. Flywheel is with big moment of force and large pressure. 3. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing. 4. Single plate electromagnetic clutch is sensitive and reliable. 5. With functions of single, continuous and opening dwell operation, dwell range is adjustable. 6. Operating position is reasonably arranged, moving-bed can be opened to its optimum. 7. Safety system is reliable. 8. All models can be optional: Air brake clutch, Pneumatic jacking device, Infra-red light safety device, Centralized Automatic oil pump, Centralized manual oil pump.

1.Professional customer After-sale service. 2.More than 20 years carton machine production experience. 3.24 hours friendly helpful customer services. 4.We took lead through the ISO9001 certification in carton package industry in China,now we also passed the SGS and BV certification,strict standard quality requirement. 5.Our products sell well in more than 20 provinces and cities nationwide,also in western Europe,Asia and other countries. 6.OEM Accepted: The products can be customized.

Thanks for your visit! More details please contact us freely!

Detailed Photos

Product Description Product Parameters

Model	1100	1200	1300	1400	1500
Max rule area	1100*800mm	1200*830mm	1300*920mm	1400*1100mm	1500*1050mm
Working speed	18-22 strokes/min	18-22 strokes/min	16-20 strokes/min	16-20 strokes/min	16-20 strokes/min
Max rule length	<32m	<35m	<40m	<45m	<45m
Power	5.5kw	5.5kw	5.5kw	5.5kw	5.5kw
Weight	4500kg	4800kg	6000kg	6500kg	7000kg

Packaging & Shipping Company Profile Our Advantages After Sales Service

No.	Service
1	The product meets China industry standard.
2	The supplier provides paid service,the buyer is in charge of workers' salary, round flight tickets,living and food during the machinery installed period.
3	The supplier is responsible for installation and training the technician, these kinds of cost should be paid by buyer.
4	WARRANTY PERIOD: 12 months counting from end of debugging.
5	Whole Life paid service.
