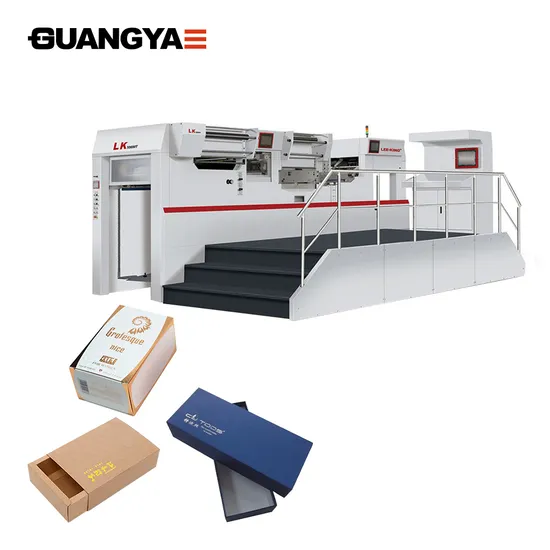

High Quality Flatbed Hot Foil Stamping Machine (LK106MT)
High Quality Flatbed Hot Foil Stamping Machine (LK106MT)

High Quality Flatbed Hot Foil Stamping Machine (LK106MT)

Overview TECHNICAL PARAMETER MAIN FEATURES Non-stop Feeder • Non-stop High-Speed Feeder • Strong sheet suction feeder •

Send your inquiry

DESCRIPTION

Overview
Basic Info.
Model NO. LK106MT
Usage Paper Printer
Hot Stamping Pressure Factor Substrate
Decisive Factor Pressure
Transport Package Vacuum Packing
Specification CE
Trademark Shiwei, Guangya
Origin China
HS Code 84439119
Production Capacity 10 Sets/Month
Product Description


TECHNICAL PARAMETER
ModelLK106MT
Max. sheet size(mm)1060× 770
Min. sheet size(mm)450× 370
Max. die cutting size(mm)1050× 750
Max. stamping size(mm)1030× 730
Max. feeding pile height (mm)1350
Max. delivering pile height (mm)1200
Max. working pressure(T)300
Power rating(KW)46
Main motor power(KW)11
Max. foil longitudinal diameter(mm)250
Zones individually heated20
Max. working speed(s/h)7500
Machine weight(kg)17000
Gripper Margin(mm)8-17
Air requirements0.6Mpa, > 0.37m³ /min
Overall machine dimensions(mm)6050× 4200× 2260
MAIN FEATURES

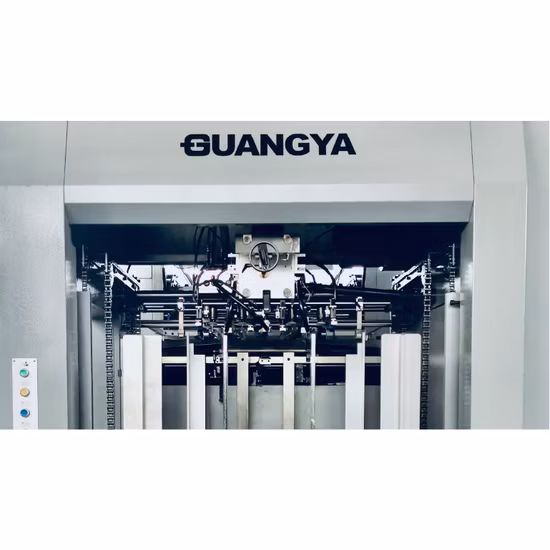

Non-stop Feeder
• Non-stop High-Speed Feeder
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function

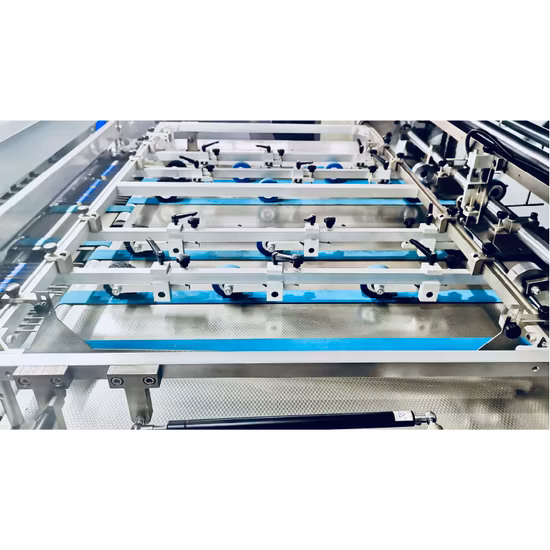

Feed Table
• Driven by chain movement,with stable and reliable operation
• Imported belts
• Electrical front lays
• Double sheet detection function
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
Host Station
• Electrically pressure adjustment function
• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine
• Automatic pressure keeping and pressure reduction function (only foil stamping)
• Imported intermittent mechanism to ensure running accuracy
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning

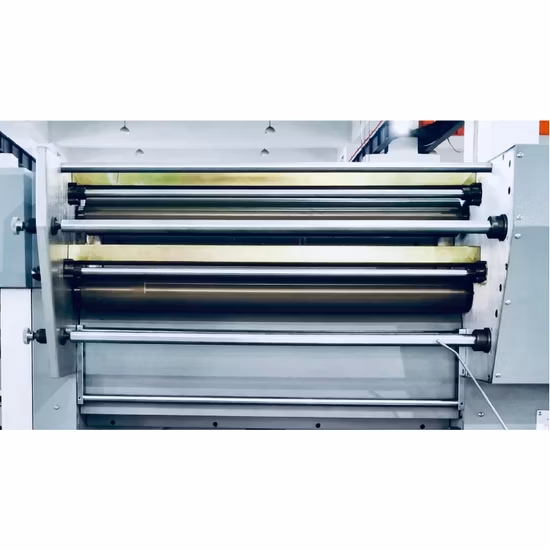

Foil Stamping Station
• With 3 longitudinal and 2 transverse foil shafts
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reduce makeready time
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimisation function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically

Delivery
• Electrical auxiliary delivery function
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function
• Tape inseter (optioinal)

Control System
Operating System
• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance


*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
